01
▰
Vehicle arrives
Enter vehicle, party and material details with master-data suggestions and configurable fields.
WEIGHMENT • TICKETING • AUTOMATION
Weighbridge software,
made intelligent.
Industrial weighbridge management software for Windows — live indicator weight, first & second weighment, professional tickets, camera proof, Excel reports, WhatsApp/email sharing and optional plant integration.
LiveSerial Weight
2-StepWeighment
PDFTicket Output
OfflineLogin Cache
WEIGH CONTROL
ONLINE
LIVE PLATFORM WEIGHT
28,740kg
COM3 • 9600 • STABLE
VehicleGJ 01 AB 2486
MaterialSTEEL COIL
Gross28,740 kg
Tare10,280 kg
NET WEIGHT
18,460 kg
CAMERA 01Snapshot Ready
TICKET #10482PDF generated
✓
ONE CONNECTED WORKFLOW
From vehicle entry to verified dispatch.
Built around the actual weighbridge operator flow — not a generic ERP screen.
02
Capture weight
Read live weight directly from the configured indicator over the serial/COM connection.
03
GROSS→TARE
Complete weighment
Save the first weight, retrieve the pending ticket later, then calculate net automatically.
04
PDFWAXL
Print, share, report
Generate tickets, share through WhatsApp/email, and produce detailed Excel reports.
OPERATOR-FIRST DESIGN
A control room that stays fast under pressure.
Fullscreen daily operations, live platform weight, ticket status, camera preview and communication status — all where the operator needs them.
- 01 Configurable ticket fields and mandatory rules
- 02 Pending vs completed weighment records
- 03 Master data with linked auto-fill
- 04 Password-protected setup areas

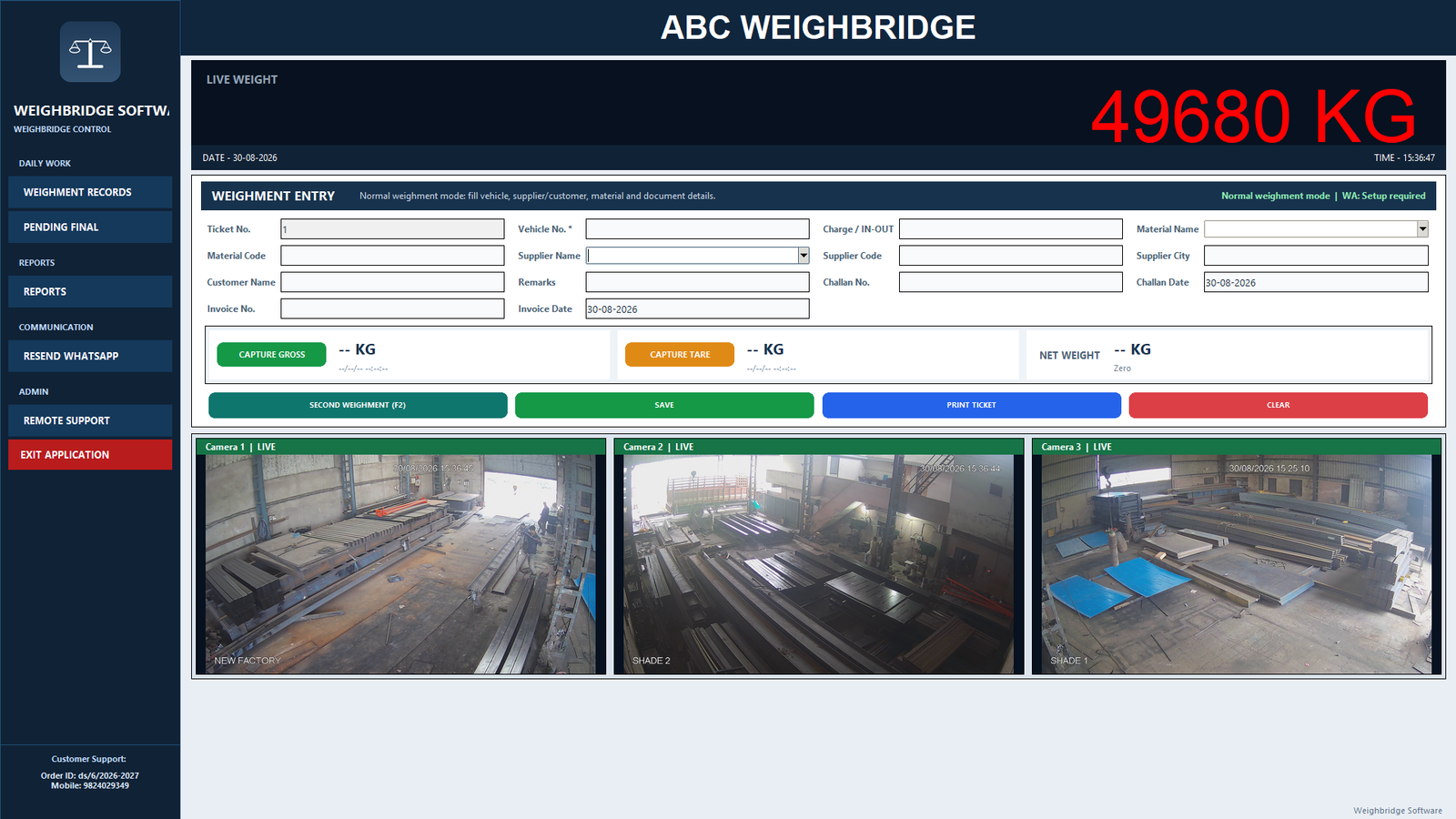

Real customer-side UI
Live weight, weighment entry, Gross/Tare/Net controls, ticket actions and multi-camera monitoring in one fullscreen operator view.
Serial weight. Direct to screen.
Configure COM port, baud, parity, data bits, stop bits and flow control to read the weighbridge indicator directly.
Visual audit trail.
Live IP camera preview with snapshots during weighment and printing when enabled.
Print for your floor.
Thermal, dot-matrix, Half A4, A4 with camera and pre-printed layouts.
Fit the process, not the other way around.
Enable, rename, validate, report and control editability for business fields.
Works at the weighbridge, even when the network does not.
Customer data is stored locally, login supports an offline cache, and backup can be configured to local, network or server destinations.
LOCAL DATA→NETWORK BACKUP→SERVER SYNC

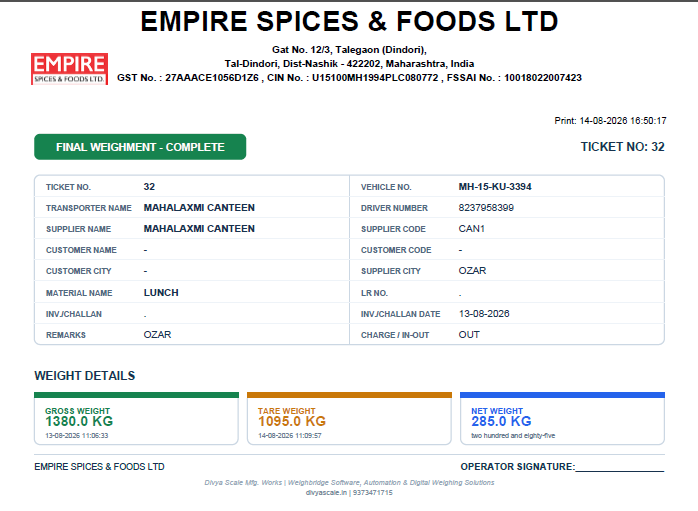

REAL TICKET OUTPUT
Professional weighment tickets, ready to print or share.
This is an actual standard ticket preview without a camera image. Camera-enabled ticket formats are also supported when a site enables snapshots.
Without Camera
Camera Supported
PDF Output
Print Ready
Multiple layouts supported
Thermal, dot-matrix, Half A4, A4 with camera and pre-printed ticket formats can be configured for the site.
WA
✉
CAM
CSV
PRN
COMMUNICATION + PLANT INTEGRATION
Connect the weighbridge to the rest of your operation.
Keep the core workflow simple, then turn on the modules a site actually needs.
WhatsAppTicket PDF sharing, resend and local chatbot mode.
EmailTicket/report attachments and daily report delivery.
PO / CSVOptional plant, PO line item, import/export and status tracking.
FTP / NetworkExchange PO and completed-ticket CSVs through configured server paths.
REPORTING THAT OPERATIONS CAN USE
Every ticket becomes usable data.
Search, filter, export and print reports across date, serial, party, vehicle, material and custom views.
CUSTOM REPORT BUILDER
Build the view you need.
Select a date range, search across fields, choose columns and generate an Excel report with totals and a summary sheet.
Date WiseVehicle WiseParty WiseMaterial WiseGST Summary
TICKETS184
NET WEIGHT2,948,620 kg
STATUSFINAL
WEIGHBRIDGE SOFTWARE FAQ
Questions before you request a demo.
Practical answers about indicator connectivity, weighment workflow, ticket formats, camera capture, offline operation and plant integration.
What does weighbridge software do?
It captures live weight from a supported weighbridge indicator, manages first and second weighment, calculates gross, tare and net weight, creates weighment tickets, stores records and produces operational reports.
Can it read live weight from my existing indicator?
Yes, when the indicator provides a supported serial/COM output. Port, baud rate, parity, data bits, stop bits and flow control can be configured for the site.
Does it support first and second weighment?
Yes. Save the first weight, keep the ticket pending, retrieve the vehicle later and complete the second weight with automatic net-weight calculation.
Can tickets include camera images?
Yes. Standard layouts can print without camera images, and camera-enabled layouts can include snapshots when IP camera capture is enabled.
Can tickets be sent on WhatsApp or email?
Yes. Ticket PDFs and reports can be shared through configured WhatsApp and email modules, including resend workflows.
Does it work without internet?
Core weighbridge data is stored locally and login can use an offline cache. Internet-dependent services such as external messaging or server synchronization need connectivity when they are used.
Can it integrate with PO, CSV or plant systems?
Optional integration can support PO line items, CSV import/export, FTP or network paths and completed-ticket data exchange based on the plant workflow.
CONTROL WHERE IT MATTERS
Configurable. Protected. Supportable.
Setup areas can be password-protected while daily operation stays simple for the operator.
Admin & Security
Separate passwords for protected menus, admin password controls and support-level access.
Data & Backup
Move the data location, back up locally, copy to a network folder or configure server backup.
Remote Support
Quick AnyDesk access helps troubleshoot printer, COM port, camera, WhatsApp and reports.
KG
WEIGHBRIDGE SOFTWARE
One screen between the platform and the business.
Live weight. Two-stage weighment. Ticketing. Reports. Camera. Sharing. Backup. Optional plant integration.
Demo & Sales on WhatsApp · +91 98240 29349
